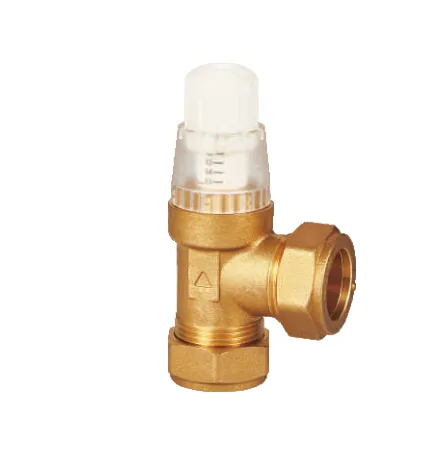

1. What Is a Bypass Valve

A Bypass Valve is a valve designed to allow fluid to flow through an alternate route when the main line becomes restricted, closed, overloaded, or when system conditions require pressure stabilization or minimum circulation. The valve can be manually operated or automatically actuated based on pressure, differential pressure, temperature, or system demand.

In simple terms, a bypass valve creates a secondary path that helps a system continue operating safely and efficiently when the primary path is not suitable for full or unrestricted flow.

In many systems, the Bypass Valve is not just an accessory. It is a protective and performance enhancing component that helps prevent:

• Excessive differential pressure

• Pump overheating due to low flow

• Dead heading in centrifugal pumps

• Noise and vibration in HVAC circuits

• Thermal stress in boilers and heat exchangers

• Filter collapse or overload

• Flow starvation in recirculation systems

• Pressure spikes during transient conditions

Because of these benefits, the Bypass Valve is widely recognized as a critical device in fluid handling and pressure management systems.

2. Why Bypass Valve Matters in Modern Fluid Systems

Modern fluid systems are often more compact, automated, energy efficient, and sensitive to pressure changes than traditional systems. Variable speed pumps, control valves, modulating equipment, plate heat exchangers, smart boilers, and closed loop hydronic circuits all create dynamic operating conditions.

Under these conditions, a Bypass Valve becomes important because it helps maintain operational stability.

Key reasons why bypass valves are important:

• Protects pumps from operating below minimum safe flow

• Prevents excessive pressure buildup when control valves close

• Maintains circulation in closed loop systems

• Supports balanced flow in variable demand systems

• Improves temperature control by enabling recirculation

• Extends service life of valves, pumps, seals, and heat exchangers

• Reduces maintenance caused by pressure shock or cavitation

• Improves energy management when properly selected

A well selected Bypass Valve can improve both system safety and overall lifecycle cost.

3. Core Function of a Bypass Valve

The primary function of a Bypass Valve is to redirect fluid when needed. However, in practice, the component often serves multiple engineering purposes.

Main functions of a bypass valve:

• Pressure Relief Through Alternate Flow
  It reduces pressure buildup by allowing fluid to move around a restriction.

• Minimum Flow Protection
  It ensures pumps or heat sensitive equipment receive a minimum amount of flow.

• Differential Pressure Control
  It opens when the pressure difference between supply and return exceeds a preset level.

• Recirculation Support
  It enables internal circulation when downstream demand decreases.

• Equipment Protection
  It protects filters, membranes, coils, boilers, and valves from stress.

• System Stability
  It smooths fluctuations caused by modulating or intermittent operation.

4. How a Bypass Valve Works

The exact operation of a Bypass Valve depends on its type, but the principle is straightforward: when system conditions reach a certain threshold, the valve opens partially or fully to allow fluid to flow through the bypass path.

Basic operating sequence:

1. Fluid flows normally through the main system path.

2. The main path becomes restricted, partially closed, or pressure rises.

3. Pressure, differential pressure, or another control variable reaches the valve setting.

4. The Bypass Valve opens.

5. Some or all fluid is redirected through the bypass line.

6. Pressure drops or flow is stabilized.

7. The valve modulates or closes when normal conditions return.

Example in a hydronic system:

If multiple Zone valves close, pump pressure rises in the supply line. A differential Pressure Bypass Valve senses the pressure difference between supply and return and opens to allow water to circulate back to the return side, protecting the pump and reducing noise.

5. Main Types of Bypass Valve

There are several common forms of Bypass Valve, each suited to specific operating conditions.

Table 1: Common Types of Bypass Valve

6. Key Components of a Bypass Valve

Although designs vary, most Bypass Valve assemblies include a common set of internal and external components.

Table 2: Main Components of a Bypass Valve

7. Common Materials Used in Bypass Valve Manufacturing

Material selection is a major factor in Bypass Valve performance, especially for corrosion resistance, temperature tolerance, pressure capability, and media compatibility.

Table 3: Common Bypass Valve Materials

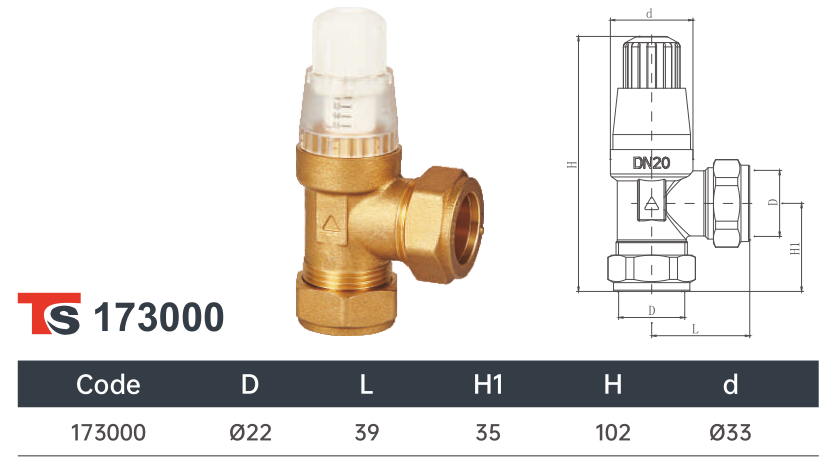

8. Typical Technical Specifications of a Bypass Valve

The exact specification of a Bypass Valve depends on application, but certain parameters appear in nearly all engineering and procurement documents.

Table 4: Typical Bypass Valve Specification Parameters

9. Bypass Valve Pressure and Flow Performance Factors

The performance of a Bypass Valve depends on more than just nominal size. Engineers must understand how the valve behaves under real operating conditions.

Key performance factors:

• Opening pressure or differential pressure setting

• Spring stiffness or diaphragm calibration

• Cv or Kv flow coefficient

• Media viscosity and density

• Upstream and downstream pressure variation

• Temperature effects on seals and spring rate

• Flow path geometry

• Valve travel characteristics

• System cycling frequency

• Installation orientation

A bypass valve that is too small may create excessive pressure drop. A valve that is too large may open too aggressively and destabilize the system.

10. Advantages of Using a Bypass Valve

A correctly selected Bypass Valve offers significant operational benefits.

Main advantages:

• Protects pumps against dead heading

• Maintains minimum circulation

• Prevents excessive differential pressure

• Reduces water velocity noise in HVAC systems

• Protects filters and heat exchangers

• Minimizes cavitation risk in some circuits

• Improves system response during low demand conditions

• Supports energy efficient control when paired with variable systems

• Reduces maintenance frequency

• Extends component life

• Improves system reliability

• Helps maintain stable temperatures in recirculation loops
