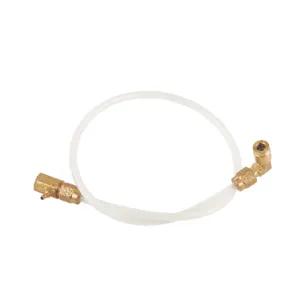

1. What Is High Pressure Flexible Hose

A High Pressure Flexible Hose is a specially engineered hose assembly or hose body designed to transfer liquids, gases, steam, air, oil, chemicals, or process media under elevated pressure conditions while maintaining flexibility. Unlike rigid pipe systems, a high pressure flexible hose can bend, absorb vibration, compensate for movement, reduce installation stress, and fit into confined spaces.

The term High Pressure Flexible Hose typically refers to hose products that are designed with reinforced layers, durable hose walls, protective outer covers, and pressure resistant end fittings. Depending on the application, a high pressure flexible hose may be made from rubber, thermoplastic, PTFE, stainless steel, composite materials, or multilayer constructions.

In industrial terminology, a High Pressure Flexible Hose can be used in:

• Hydraulic circuits

• Pump discharge lines

• Compressed air systems

• Water jet systems

• Process transfer lines

• Steam and hot fluid service

• Gas distribution systems

• Chemical transfer systems

• Machinery connections

• Mobile equipment and dynamic piping routes

Because pressure, movement, temperature, and media compatibility vary by application, the selection of a High Pressure Flexible Hose requires technical consideration of material type, pressure class, operating temperature, bend radius, connection style, and safety margin.

2. Why High Pressure Flexible Hose Matters in Industrial Systems

Industrial systems often operate under conditions where pressure is not only high but also dynamic. Pressure surges, pulsation, thermal cycling, and vibration can quickly damage rigid connections or poorly selected hose assemblies. A High Pressure Flexible Hose solves these issues by combining:

• Pressure containment

• Flexibility

• Mechanical resilience

• Vibration absorption

• Easier installation

• Reduced equipment stress

In many systems, a High Pressure Flexible Hose is not merely an accessory. It is a functional engineering component that protects pumps, valves, Manifolds, compressors, cylinders, filters, heat exchangers, and instrumentation from mechanical loads and pressure related failure.

Key reasons it matters:

• Prevents excessive stress caused by pipe misalignment

• Reduces transmission of vibration to connected equipment

• Handles pressure spikes better when properly specified

• Supports maintenance friendly system layouts

• Enables safer connections in moving or thermally active systems

• Helps reduce noise in certain fluid and air systems

• Improves serviceability in compact industrial designs

3. Core Functions of High Pressure Flexible Hose

A High Pressure Flexible Hose performs several essential functions in industrial and utility systems.

Primary Functions

1. Transfer pressurized media
   Safely conveys fluids or gases from one point to another.

2. Prevent stress concentration
   Reduces stress on threaded ports, flanges, pumps, and valves.

3. Absorb vibration
   Minimizes vibration transmission from rotating or reciprocating equipment.

4. Accommodate movement
   Handles thermal expansion, machine movement, or alignment offset.

5. Enable compact routing
   Provides installation flexibility where rigid piping is impractical.

6. Support pressure integrity
   Maintains structural performance under continuous or intermittent pressure loads.

4. Main Structural Components of High Pressure Flexible Hose

A typical High Pressure Flexible Hose is not a single layer tube. It is a composite structure engineered for pressure, durability, and media compatibility.

Common Structural Layers

• Inner Tube
  The layer in direct contact with the media. Must resist chemical attack, permeation, and temperature.

• Reinforcement Layer
  Braided wire, spiral wire, textile braid, synthetic fiber, or composite reinforcement to withstand pressure.

• Intermediate Cushion or Barrier Layer
  Sometimes used to separate reinforcement and improve durability.

• Outer Cover
  Protects against abrasion, UV, weather, oil splash, chemicals, and mechanical wear.

• End Fittings
  Crimped, swaged, welded, threaded, flanged, or quick connect ends for system integration.

5. Common Materials Used in High Pressure Flexible Hose

Different media and operating conditions require different hose constructions. Below is a general overview.

Table 1: Common Materials for High Pressure Flexible Hose

6. Types of High Pressure Flexible Hose

The term High Pressure Flexible Hose covers multiple product categories.

Main Types

1. Hydraulic High Pressure Flexible Hose

Designed for hydraulic oil and fluid power systems. Often reinforced with wire braid or wire spiral.

2. Stainless Steel High Pressure Flexible Hose

Used in high temperature, steam, gas, and corrosive environments. Often corrugated stainless core with braid reinforcement.

3. PTFE High Pressure Flexible Hose

Excellent for chemicals, solvents, pharmaceuticals, and clean process applications.

4. Thermoplastic High Pressure Flexible Hose

Lightweight, flexible, and common in mobile hydraulics, pneumatic systems, and specialty industrial use.

5. Braided Rubber High Pressure Flexible Hose

Widely used in industrial air, water, oil, and general service applications.

6. Composite High Pressure Flexible Hose

Used for aggressive chemicals, petroleum transfer, and specialized fluid handling.

7. Key Advantages of High Pressure Flexible Hose

A High Pressure Flexible Hose offers many advantages over rigid or low pressure alternatives.

Main Benefits

• High pressure resistance

• Easier installation in restricted spaces

• Better vibration isolation

• Reduced load on pumps and valves

• Compensation for thermal expansion

• Ability to handle movement and dynamic service

• Lower risk of rigid joint cracking in some systems

• Faster maintenance replacement compared with hard piping sections

• Adaptability to multiple connection types

• Wide material options for different media

8. Typical Applications of High Pressure Flexible Hose

A High Pressure Flexible Hose is used across many industries.

Common Applications

• Hydraulic power units

• Pump suction and discharge support lines

• Water pressure booster systems

• Industrial cleaning systems

• High pressure wash systems

• Compressed air distribution

• Pneumatic machinery

• Steam transfer and condensate routing

• Chemical injection lines

• Process fluid circulation systems

• Heat exchanger connections

• Compressor outlets

• Fuel transfer systems

• Marine systems

• Mining equipment

• Construction machinery

• Agricultural machinery

• Water treatment plants

• Fire protection auxiliary systems

• Food and beverage utility lines (when compatible materials are used)

9. High Pressure Flexible Hose in Water Systems

In water systems, a High Pressure Flexible Hose is often used to connect pumps, pressure vessels, filtration skids, booster assemblies, and process manifolds.

Benefits in Water Systems

• Reduces vibration from booster pumps

• Handles pressure cycling in demand systems

• Simplifies installation in packaged skids

• Supports easier equipment servicing

• Helps absorb thermal and mechanical movement

Common water applications:

• Booster pump stations

• RO systems

• Water treatment skids

• Industrial wash systems

• Cooling water circulation

• Irrigation manifolds

• Pressure testing systems

10. High Pressure Flexible Hose in Hydraulic Systems

Hydraulic systems are one of the most important application categories for High Pressure Flexible Hose.

Hydraulic Requirements

• High burst pressure margin

• Pressure impulse resistance

• Oil compatibility

• Reinforced structure

• Controlled bend radius

• Secure crimped fittings

• Resistance to abrasion and flex fatigue

Common hydraulic applications:

• Excavators

• Press machines

• Injection molding machines

• Hydraulic cylinders

• Lift equipment

• Agricultural machinery

• Mobile hydraulics

• Power packs
