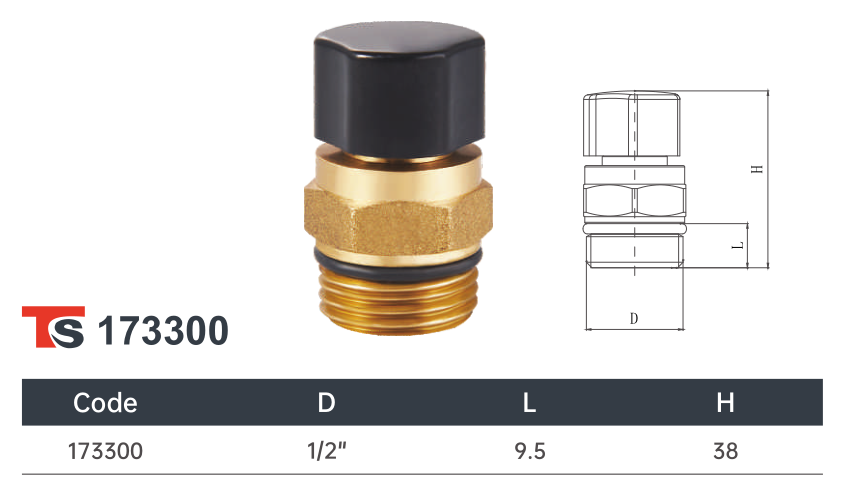

1. What Is a Vacuum Valve

A vacuum valve is a mechanical or electromechanical valve designed to control the flow of gas, air, or fluid in systems operating below atmospheric pressure. In simple terms, it is used where a system creates or maintains a vacuum and needs a reliable way to open, close, regulate, protect, isolate, or release that vacuum condition.

A vacuum valve can serve multiple purposes:

• Isolating a vacuum chamber from a vacuum pump

• Admitting air to break a vacuum safely

• Protecting tanks or vessels from collapse caused by excessive vacuum

• Regulating negative pressure for process stability

• Preventing reverse flow into sensitive equipment

• Maintaining consistent vacuum levels in production systems

Because many industrial systems depend on pressure differentials, the vacuum valve is not just a small accessory. It is often a critical control and protection component.

2. Why Vacuum Valves Matter in Modern Systems

In many industrial and commercial systems, maintaining the correct vacuum level is essential for:

• Product quality

• Process repeatability

• Equipment safety

• Energy efficiency

• Contamination control

• Structural protection of tanks and chambers

• Stable transfer and suction performance

Without a proper vacuum valve, a system may experience:

• Vacuum instability

• Unwanted air ingress

• Reduced pump efficiency

• Product defects

• Tank deformation or collapse

• Back contamination

• Increased maintenance downtime

That is why vacuum valves are common in vacuum packaging, distillation, filtration, drying, degassing, suction transfer, thermal processing, laboratory testing, and vessel protection systems.

3. Core Functions of a Vacuum Valve

A vacuum valve may perform one or more of the following functions depending on design:

3.1 Isolation

An isolation vacuum valve separates one part of the system from another, such as:

• Vacuum chamber from pump line

• Process vessel from header

• Laboratory apparatus from Manifold

• Maintenance section from active production line

3.2 Regulation

A regulating vacuum valve controls the vacuum level to maintain a set operating range.

3.3 Relief

A vacuum relief valve opens automatically when vacuum exceeds a safe threshold to prevent vessel damage.

3.4 Vacuum Breaking

A vacuum breaker valve admits air or gas to intentionally cancel the vacuum.

3.5 Backflow Prevention

A vacuum Check Valve or non return function prevents reverse movement of gas or fluid into sensitive equipment.

3.6 Process Sequencing

In automated systems, vacuum valves help coordinate multi step operations such as filling, sealing, drying, evacuation, or transfer.

4. How a Vacuum Valve Works

The operating principle depends on the specific type, but most vacuum valves work by responding to pressure differential, mechanical actuation, spring force, diaphragm movement, piston travel, solenoid control, or manual operation.

General Operating Principle

1. A vacuum source reduces internal system pressure below atmospheric pressure

2. The valve senses this pressure differential

3. Depending on design, the valve remains closed, opens, modulates, or relieves

4. The internal sealing element controls passage flow

5. Once pressure returns to the target range, the valve re-seats or repositions

Example: Vacuum Relief Valve

• Vessel vacuum becomes too high

• External atmospheric pressure exceeds spring setting

• Valve opens inward or admits balancing air

• Vacuum level decreases to safe range

• Valve closes again

Example: Vacuum Isolation Valve

• Pump starts

• Control system commands valve open

• Vacuum line connects to chamber

• After process completes, valve closes to hold or isolate vacuum

5. Main Types of Vacuum Valves

There are many vacuum valve designs. The correct type depends on the application, cleanliness requirements, pressure range, control method, and media compatibility.

5.1 Vacuum Isolation Valve

Used to open or shut off flow between vacuum system sections.

Typical uses:

• Vacuum chambers

• Pump lines

• Laboratory manifolds

• Packaging equipment

5.2 Vacuum Relief Valve

Automatically opens when vacuum exceeds a preset safe limit.

Typical uses:

• Storage tanks

• Process vessels

• Jacketed tanks

• Condensate systems

5.3 Vacuum Breaker Valve

Admits air to intentionally eliminate vacuum.

Typical uses:

• Steam systems

• Condensate lines

• Tank draining

• Sanitary processing equipment

5.4 Vacuum Regulating Valve

Maintains a desired vacuum level by modulating flow.

Typical uses:

• Laboratory systems

• Filtration systems

• Packaging machines

• Process control loops

5.5 Vacuum Check Valve

Prevents reverse flow under vacuum conditions.

Typical uses:

• Pump protection

• Suction lines

• Shared vacuum headers

• Multi branch systems

5.6 Solenoid Vacuum Valve

Electrically actuated valve for automated vacuum control.

Typical uses:

• Automation lines

• Packaging equipment

• Robotics

• Pneumatic vacuum pick and place systems

5.7 Diaphragm Vacuum Valve

Uses a flexible diaphragm for clean sealing and precise control.

Typical uses:

• Sanitary systems

• Chemical dosing

• Laboratory applications

• Corrosive media environments

5.8 Ball Type Vacuum Valve

Quarter turn design with strong shutoff and simple operation.

Typical uses:

• Utility lines

• General vacuum isolation

• Low maintenance systems

5.9 Butterfly Vacuum Valve

compact for larger diameters with low pressure drop.

Typical uses:

• Large ducting

• Vacuum conveying

• Industrial exhaust and process systems

5.10 Gate or Angle Vacuum Valve

Common in high vacuum or process systems where full opening and line geometry matter.

6. Vacuum Valve vs Vacuum Breaker vs Vacuum Relief Valve

These terms are often confused. While related, they are not always identical.

7. Common Materials Used in Vacuum Valve Construction

Material selection is essential for durability, corrosion resistance, temperature stability, and compatibility.

7.1 Brass

Advantages:

• Good machinability

• Cost effective

• Reliable for water, air, mild utility service

• Common in HVAC and plumbing related vacuum functions

Best for:

• General utility systems

• Water systems

• Air and low corrosive service

7.2 Stainless Steel

Advantages:

• Excellent corrosion resistance

• High temperature capability

• Strong structural stability

• Clean and sanitary friendly

Best for:

• Food processing

• Pharmaceutical systems

• Chemical applications

• Industrial process systems

7.3 Carbon Steel

Advantages:

• Strong and durable

• Suitable for heavy duty industrial systems

• Often economical for large sizes

Best for:

• General industrial service

• Utility vacuum lines

• Oil and process systems

7.4 PVC CPVC PP PVDF

Advantages:

• Excellent corrosion resistance in some chemicals

• Lightweight

• Good for low to moderate temperature applications

Best for:

• Chemical handling

• Water treatment

• Corrosive fluid systems

7.5 Aluminum

Advantages:

• Lightweight

• Good for some dry air or gas vacuum systems

• Often used in specialized equipment

8. Vacuum Valve Sealing Options

Seal performance directly affects vacuum integrity.

9. Typical Vacuum Valve Connection Types

Vacuum valves can be connected in multiple ways depending on service conditions.

• Threaded connection

• Flanged connection

• Tri clamp sanitary connection

• Compression fitting

• Hose barb

• Weld end

• Socket end

• Quick connect or quick release fitting

10. Vacuum Valve Pressure and Vacuum Ranges

Vacuum valves are selected based on the expected operating range.

Common Range Categories

• Low vacuum: Slightly below atmospheric pressure

• Medium vacuum: Moderate process vacuum levels

• High vacuum: Much lower pressure requiring tight sealing

• Ultra high vacuum: Specialized scientific or semiconductor applications

For most general industrial and utility applications, the focus is on low to medium vacuum, especially in:

• Packaging

• Water systems

• Tank protection

• HVAC

• Laboratory transfer

• Food processing
